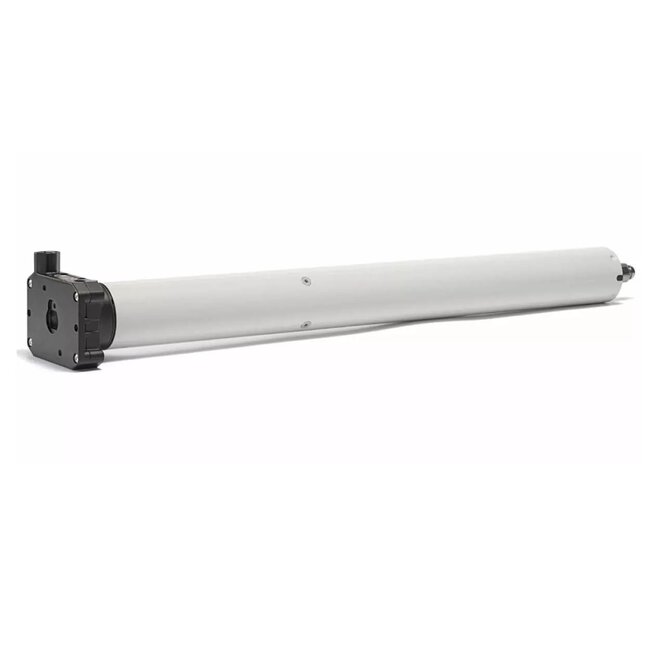

Elero VariEco L NHK tubular motor

The VariEco L NHK series tubular motor has an emergency hand control, with a diameter of 63 mm and a length from 563 mm it is suitable for Roller shutters and blinds. These drives are available from 40 to 120 Nm, in 11 or 14 rpm. The tubular motor has mechanical end adjustment.

- suitable for roller shutters and blinds
- Successor to Elero Type 11/4, 11/6, 11/8, 11/10 and 11/12
- Supplied without motor support and adapter set
- tubular motor with a diameter of Ø 63
- mechanical end adjustment

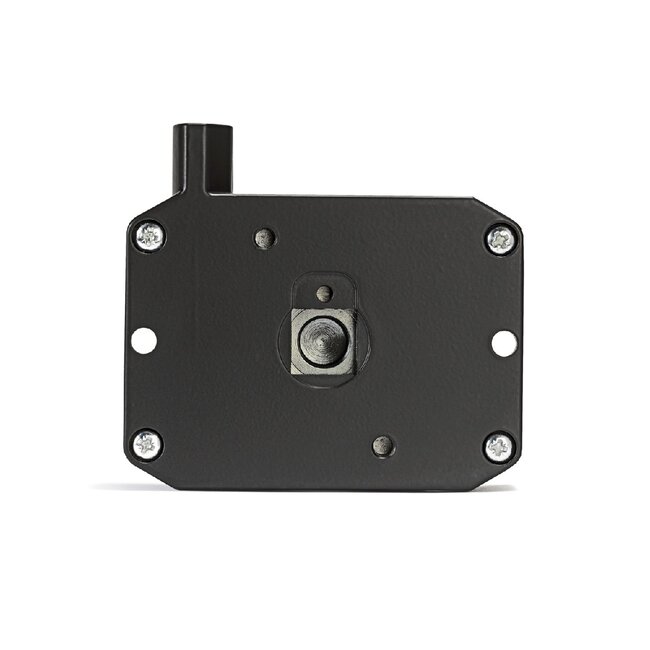

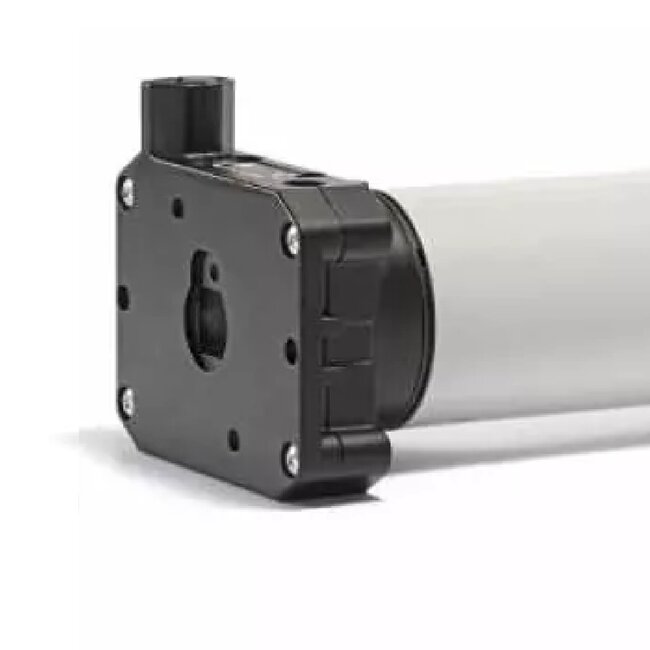

- end positions can be set on the motor head
- emergency hand control (supplied without eye)
- tubular motor 230 V/50 Hz
- speed depending on force in 11 or 14 rpm
- available in 40 to 120 Nm
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits into tube with a minimum diameter of Ø 70 mm
- parallel switching not possible
- not suitable for continuous use

- Elero VariEco L 40 NHK - 40 Nm - 14 rpm - 333 Watt - length 730 mm
- Elero VariEco L 60 NHK - 60 Nm - 14 rpm - 356 Watt - length 730 mm
- Elero VariEco L 80 NHK - 80 Nm - 14 rpm - 415 Watt - length 760 mm
- Elero VariEco L 100 NHK - 100 Nm - 11 rpm - 390 Watt - length 760 mm
- Elero VariEco L 120 NHK - 120 Nm - 11 rpm - 460 Watt - length 760 mm
