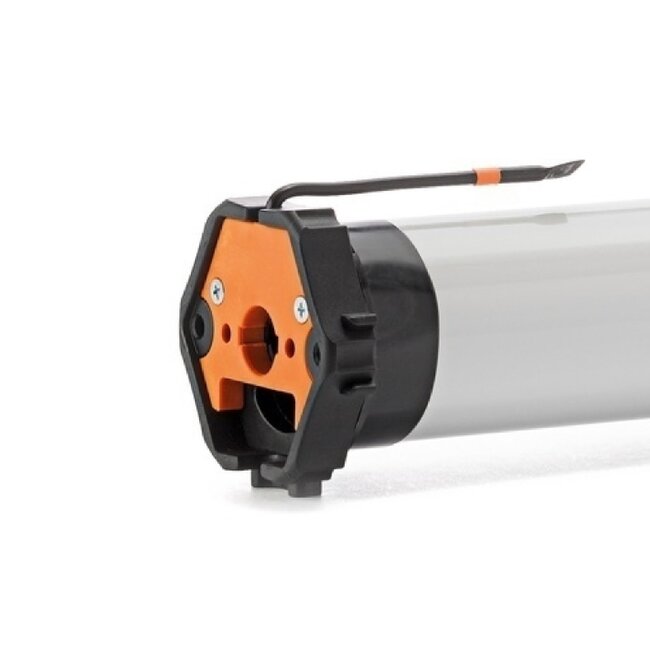

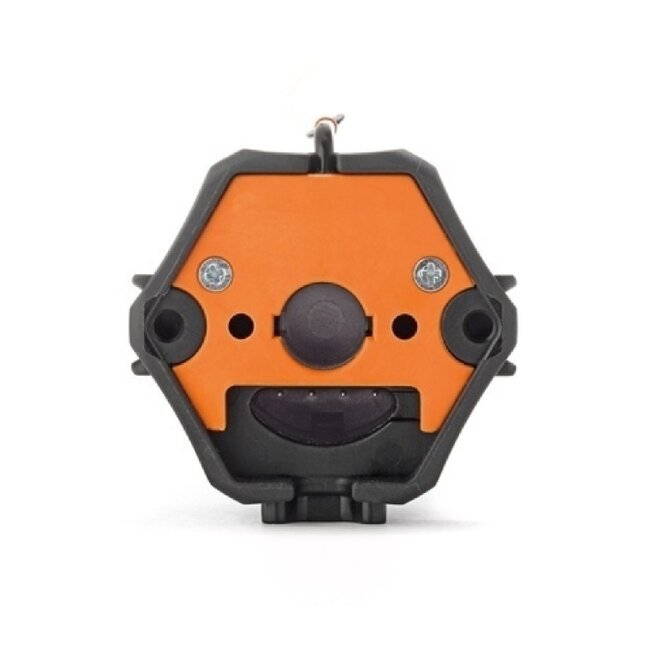

Elero VariEco M-868 tubular motor for Roller shutters or Screens

Elero VariEco M-868 is a wired tubular motor with a mechanical final adjustment and an integrated bidirectional 868 MHz receiver that can be easily controlled using an Elero Handheld transmitter. Adapter plate allows you to reuse the already installed motor support of an old Elero T9.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- integrated bidirectional 868 MHz receiver
- speed of 14 rpm
- available in 10 to 50 Nm
- successor of Elero T9 tubular motor (include adapter plate)
- precise mechanical adjustment
- fits tubes with a minimum inner diameter of 50 mm
- final adjustment capacity 35 rpm
- supplied as standard with a white 3-wire (VVF) cable, length 2 metres
- not suitable for continuous use

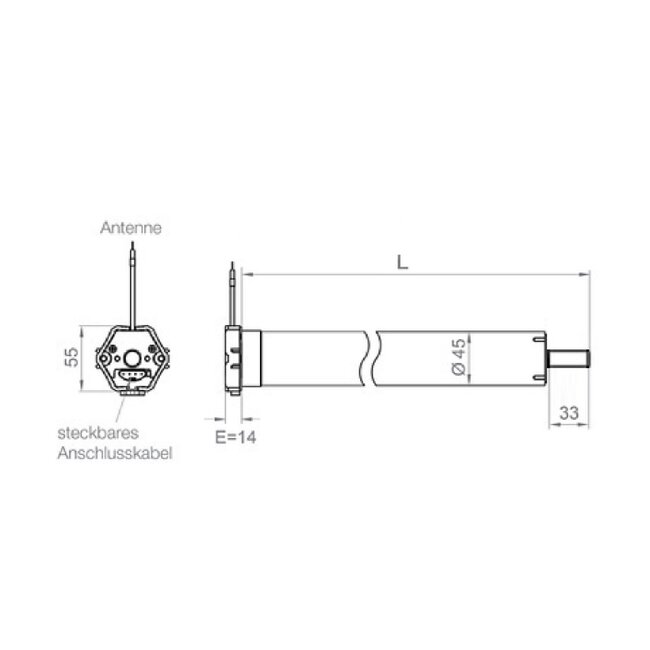

Type Elero VariEco M-868 tubular motor
- VariEco M10-868 - 10 Nm - 14 rpm - length 477 mm - 140 Watt
- VariEco M20-868 - 20 Nm - 14 rpm - length 537 mm - 200 Watt
- VariEco M30-868 - 30 Nm - 14 rpm - length 527 mm - 200 Watt
- VariEco M40-868 - 40 Nm - 14 rpm - length 557 mm - 270 Watt
- VariEco M50-868 - 50 Nm - 14 rpm - length 557 mm - 300 Watt
