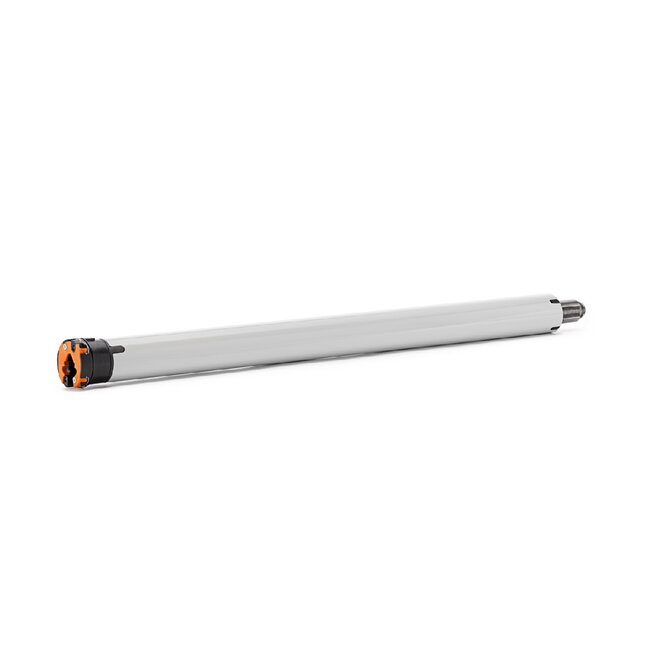

Elero RolTop S-868 tubular motor with receiver

With a diameter of 35 mm, the tube motor of the RolTop S series is suitable for roller shutters, roller blinds and blinds. These drives are available from 3 to 12 Nm and 17 and 30 rpm. The tubular motor is equipped with an integrated radio receiver.

- suitable for blinds and roller shutters
- supplied without motor support and adapter set
- tubular motor with a diameter of Ø 35 mm
- mechanical end adjustment
- tubular motor 230 V/50 Hz
- rotation speed 17, 30 and 70 rpm
- available in 1.5 to 12 Nm
- up to 8 Nm with soft-stop available
- up to 5 Nm with white motor head, above 5 Nm with black motor head
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits in tube with a minimum diameter of Ø 40 mm
- not suitable for continuous use

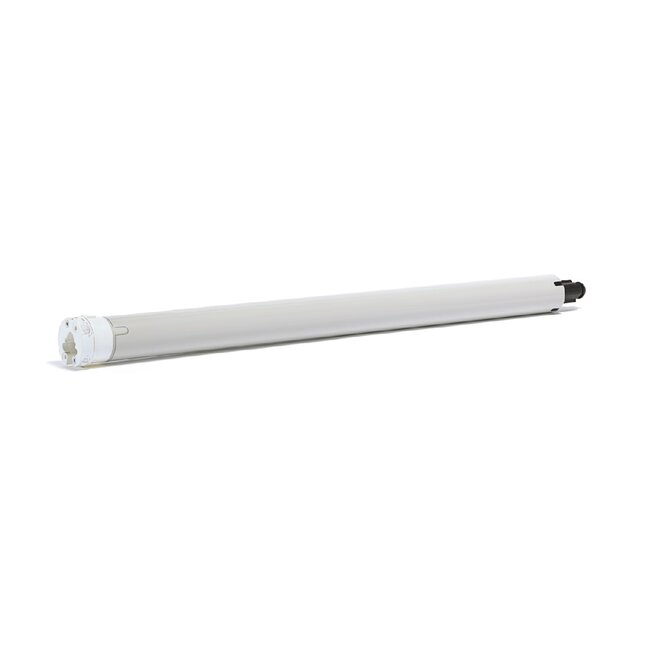

Different types of VariEco S tubular motors
- Elero VariEco S 1.5/70 - 1.5 Nm - 70 rpm - 130 Watt - length 534 mm
- Elero VariEco S 3/30 - 3 Nm - 30 rpm - 130 Watt - length 534 mm
- Elero VariEco S 5/30 - 5 Nm - 30 rpm - 168 Watt - length 534 mm
- Elero VariEco S 5/30 FL - 5 Nm - 30 rpm - 140 Watt - length 514 mm
- Elero VariEco S 8/17 - 8 Nm - 17 rpm - 168 Watt - length 534 mm
- Elero VariEco S 10/17 FL - 10 Nm - 17 rpm - 140 Watt - length 514 mm
- Elero VariEco S 12/17 FL - 12 Nm - 17 rpm - 168 Watt - length 534 mm
