Hörmann steel wire rope 3 mm with stocking

- cable thickness 3 mm
- Hörmann 40 Series sectional doors
- Z hinge --> tension springs on the left and right of the door
- available in lengths from 2365 to 3115 mm
- delivered in set of 2 cables
- underside fitted with stocking
- top side with aluminium crimp clamp

The wire ropes are attached to sectional doors Series 40 with Z hinge (valid for doors from 01.09.1999). The required length of the wire rope depends on the daylight height of the garage door:
- daylight height 1875 mm --> length 2365 mm
- Daylight height 1955 mm --> length 2445 mm
- daylight height 2000 mm --> length 2490 mm
- daylight height 2080 mm --> length 2570 mm
- day height 2125 mm --> length 2615 mm
- day height 2205 mm --> length 2695 mm
- day height 2250 mm --> length 2740 mm
- day height 2375 mm --> length 2865 mm
- day height 2500 mm --> length 2990 mm
- day height 2625 mm --> length 3115 mm

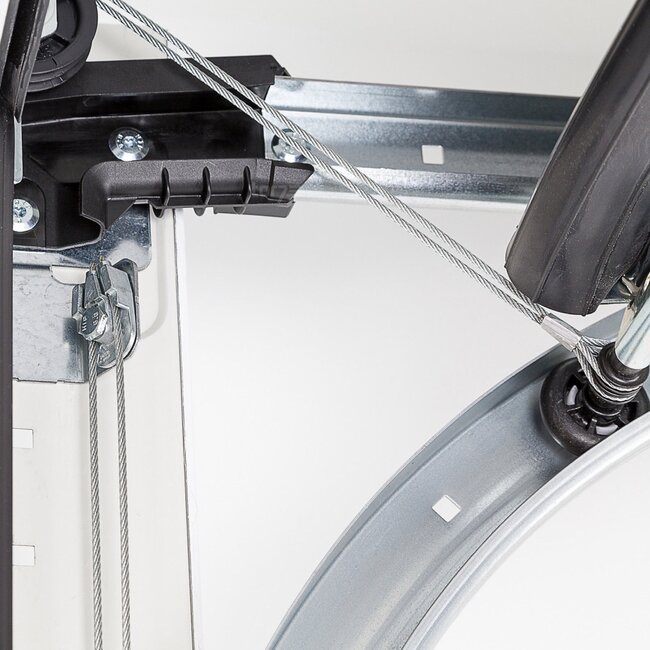

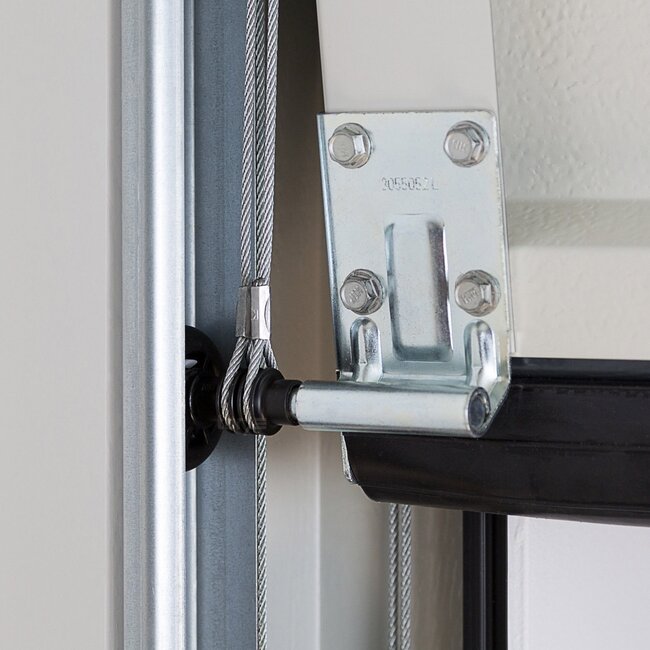

A set consists of two steel cables with a diameter of 3 mm and the corresponding stockings. The version shown is intended for the left and right side.
